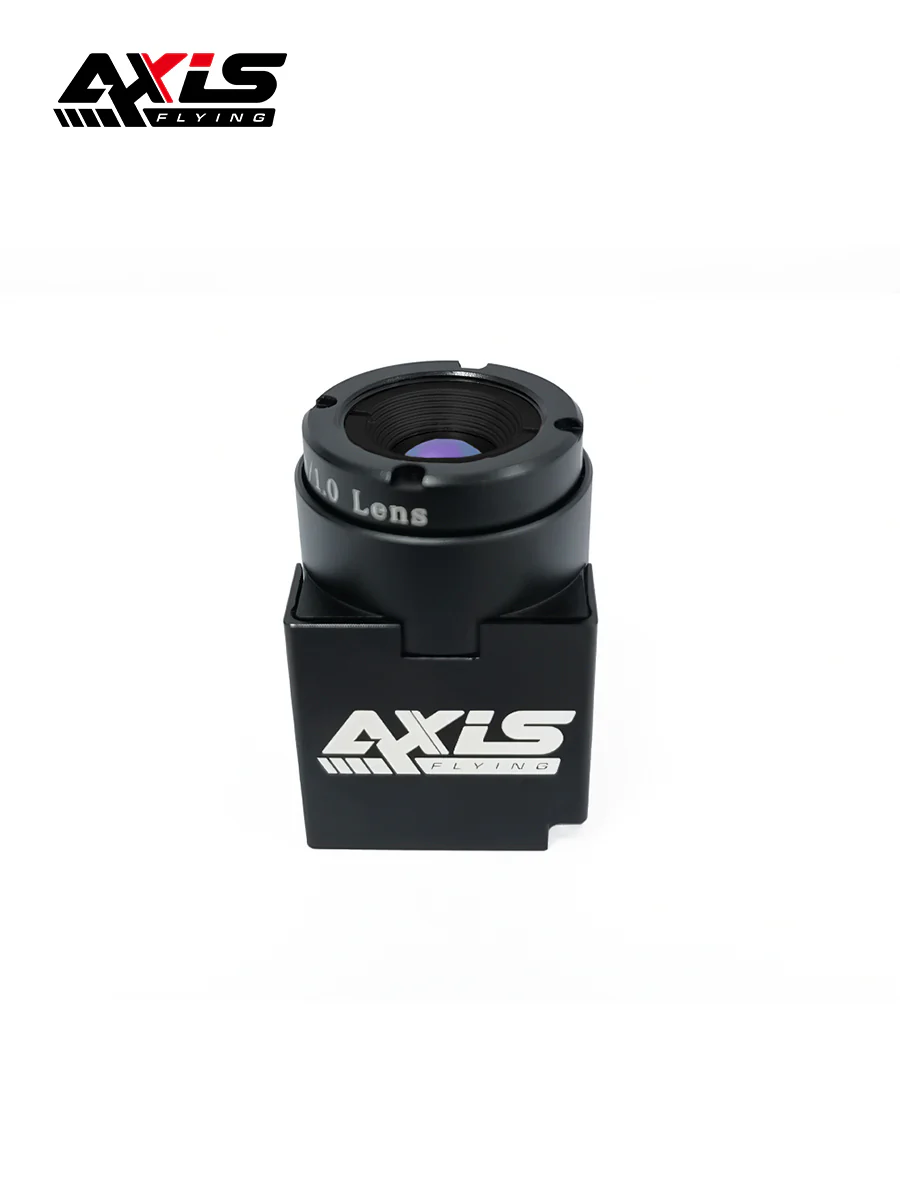

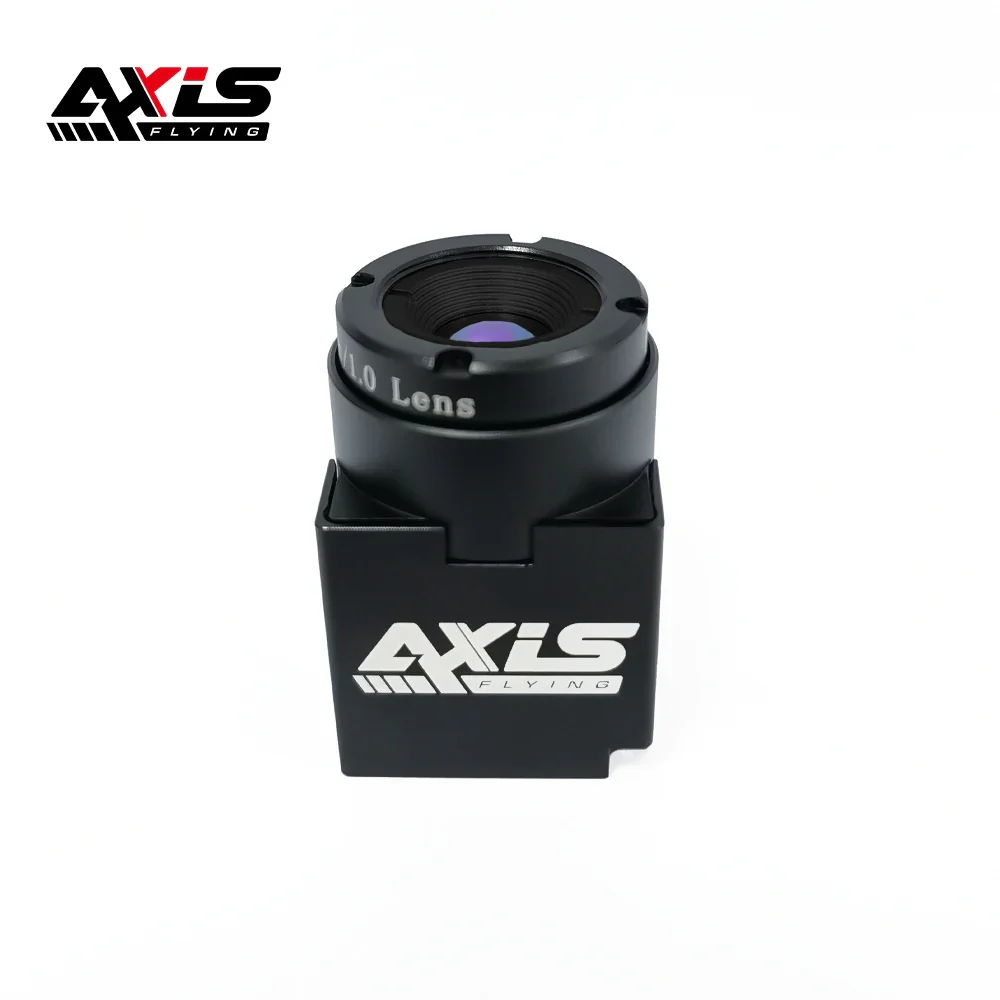

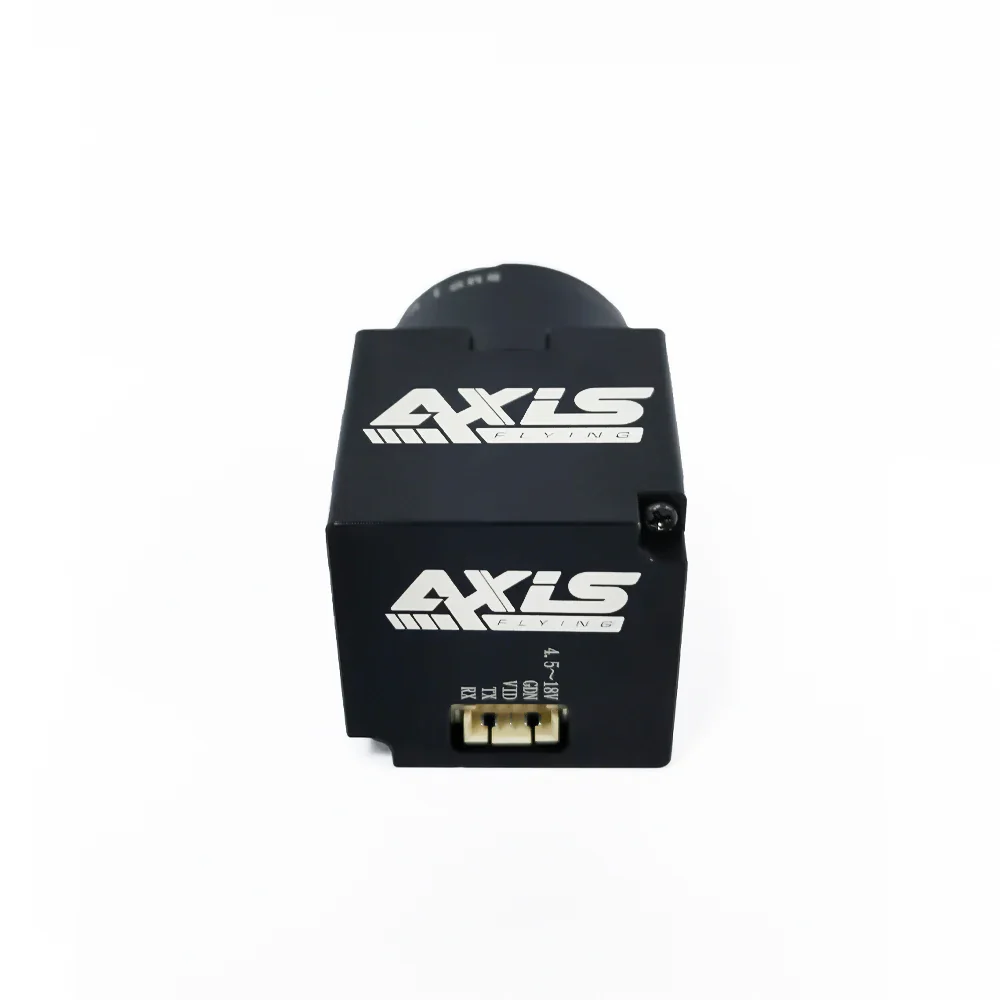

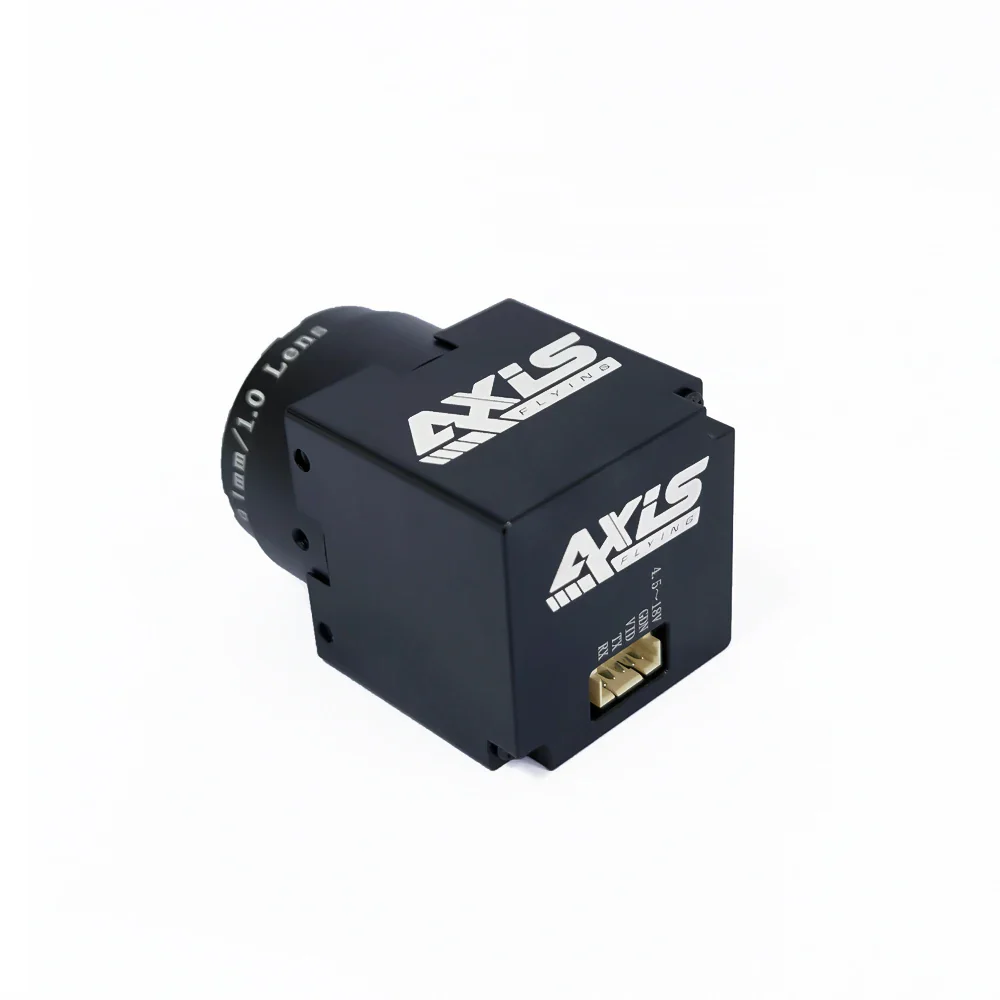

Axisflying 640 Thermal Imaging Camera - 640*512 60FPS 40MK Thermal Camera for FPV Drone Camera
-
Detail
640 Thermal Imaging Camera Specs
Feature Specification Model GE-3F Resolution 640x512 Detector type Vanadium Oxide Uncooled Infrared Focal Plane Detector Frame rate 60fps Pixel spacing 12um NETD 40mk Response band 8~14um Lens spec 9.1mm F1.0 / 13.5mm F1.0 / 18mm F1.1 FOV (H*V) 9.1mm: 48.7°x38.6°, 13.5mm: 31.9°x25.7°, 18mm: 24.2°x19.5° Whether to image Yes False color type White hot Input Voltage 4.5-18V Output type CVBS Video PAL Module volume (excluding lens) 21*21 Weight (without lens) <8g Operating temp -40°C~+80°C Storage temp -50°C~+85°C Brand AXISFLYING Descriptions
- High-Resolution Imaging: 640x512 pixel Vanadium Oxide Uncooled Infrared Detector ensures detailed and sharp thermal images.
- Lightweight Design: Weighs less than 8 grams (without lens), making it highly portable and ideal for applications where every gram counts.
- Easy Integration: Compact module dimensions of 21*21 for straightforward incorporation into a variety of systems.
- Energy-Efficient: Operates on a low input voltage range of 4.5-18V for eco-friendly and prolonged use.
- Adaptive Lens Options: Multiple lens specifications (9.1mm, 13.5mm, 18mm) to suit different field of view requirements.
- Smooth Frame Rate: Captures fluid motion at 60 frames per second, crucial for both live monitoring and detailed analysis.
- Enhanced Sensitivity: Features a NETD of 40mk, capturing subtle temperature differences effectively.
- White Hot Imaging: The false color 'white hot' mode enables easy interpretation of heat signatures.
- Durable: Operates reliably within a temperature range of -40°C to +80°C and stores safely between -50°C to +85°C.
Axisflying
Axisflying 640 Thermal Imaging Camera - High-Resolution 640x512 60FPS 40MK
Main advantages include a compact size, lightweight design, and ease of integration for the 640x512 pixel thermal imaging camera with high resolution and low power consumption.
The Axisflying 640 Thermal Imaging Camera features a high-resolution sensor with a resolution of 640x512 pixels. It has a frame rate of 60 frames per second and a pixel spacing of 12um. The camera uses an uncooled vanadium oxide focal plane detector, making it suitable for FPV drone applications. The NETD is 40mK, and the response band is 8-14pm. The lens specifications include a 9mm, 13.5mm, and 18mm options, with fields of view (H*V) of 48.78x38.6, 31.9x25.70, and 24.2x19.58, respectively. The camera can output images in both black hot and white hot color modes.
